Description

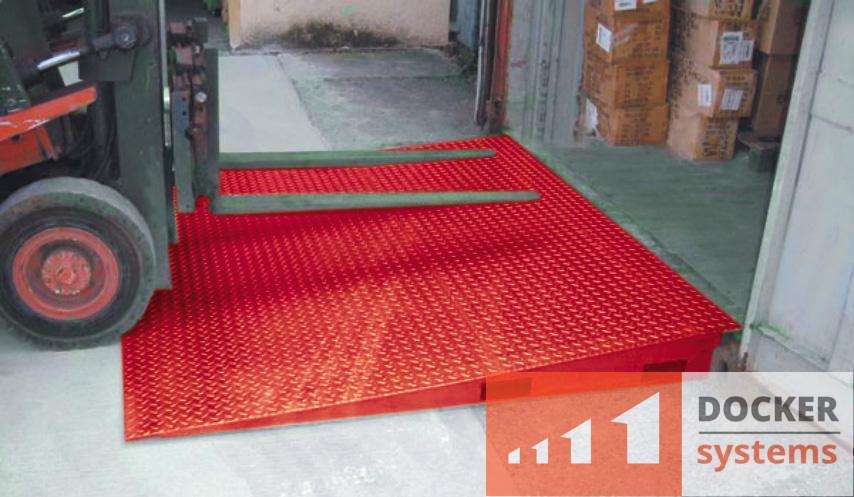

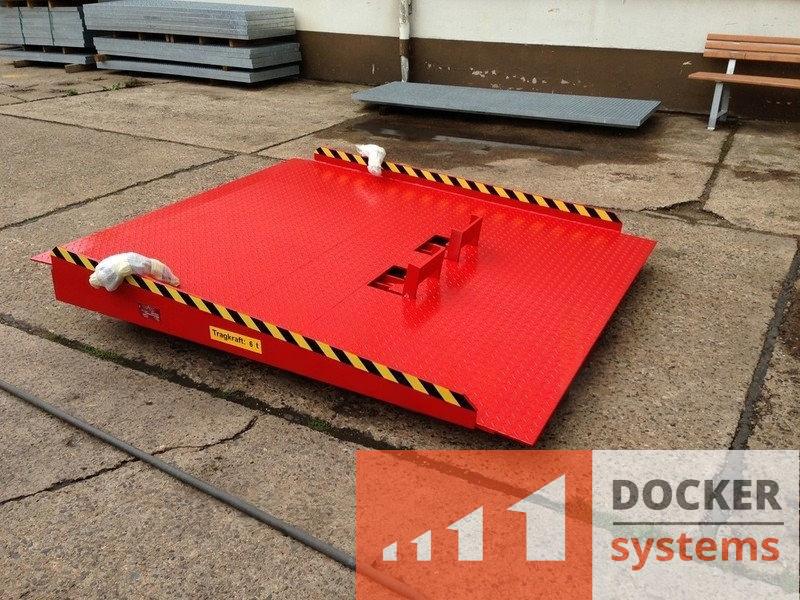

The mechanical portable bridge for containers serves as a cushion between the ground and the floor of the container, providing direct access for loading equipment. The portable bridge is an all-welded structure reinforced with stiffeners and ramps. Fences are installed on the sides of the platform. It is transported with a forklift.
When ordering a product, you can choose one of the following color options: Black (RAL 9005), Red (RAL 3000), Blue (RAL 5005).
|
Specification of the Portable bridge МП-20-29 for containers |
||
| № | Main features | |
| 1 | Maximum load, kg | 6000 |
| 2 | Working stroke, mm | +120 |
| 3 | Primer coating (2 layers) | TM Maxima |
| 4 | Paint and varnish coating (2 coats) | Enamel 2-component TM Maxima |
| 5 | Unladen weight, kg (±5%) | 450 |
| 6 | Security device | chains with carabiners |
| 7 | Safety margin | +30% |
|
Materials. |
||
| 1 | Top sheet | Corrugated steel sheet 5 |
| 2 | Ramp | Corrugated steel sheet 5 |
| 3 | Stiffening ribs | Profile pipe 120X80X4 |
| 4 | Fencing | Profile pipe 40X20X2 |
|
Overall dimensions |
||
| 1 | Overall length, mm |
2960 |
| 2 | Overall width, mm |
2000 |
| 3 | Length of the ramp, mm | 150 |
