Description

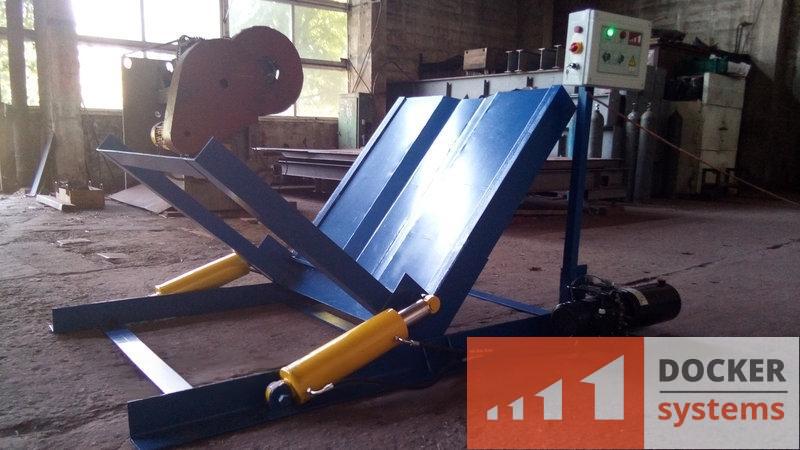

A hydraulically driven role tilter (tipper) is designed to bring the bale from a horizontal to a vertical position and vice versa. The hydraulic tilter can be used for tipping various cylindrical loads (steel coils, paper coils, wire coils, containers), which makes it versatile. The use of an tilter can significantly increase the safety and efficiency of work, as well as improve its quality.

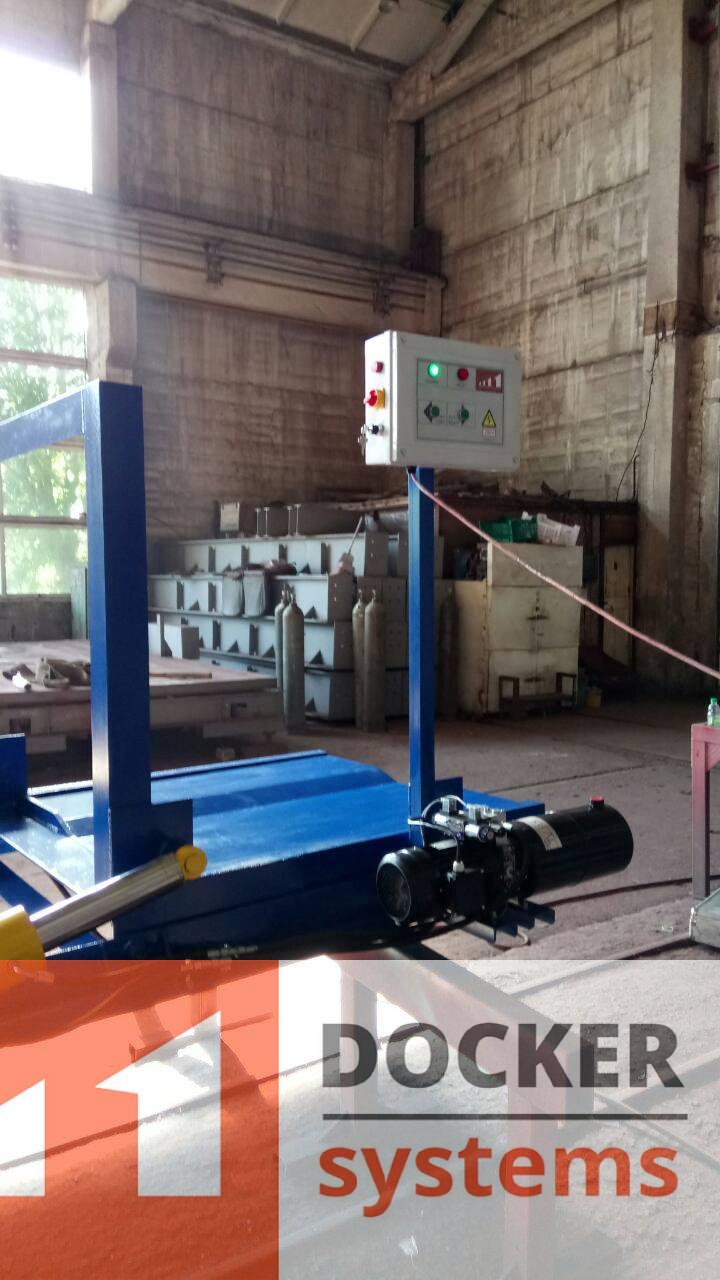

The hydraulic tilter can be manufactured in a basic configuration or with the inclusion of additional options: radio control, stationary control panel, sound and light alarms, fencing, roller conveyor and a special coating for the bed.
When ordering a product, you can choose one of the following color options: Black (RAL 9005), Red (RAL 3000), Blue (RAL 5005).
|
Specification of the Role tilter КРГ-90-25-15-13-1.5-У |
||
| № | Main features | |
| 1 | Maximum load, kg | 1500 |
| 2 | Working stroke, ° | 0 – 90 |

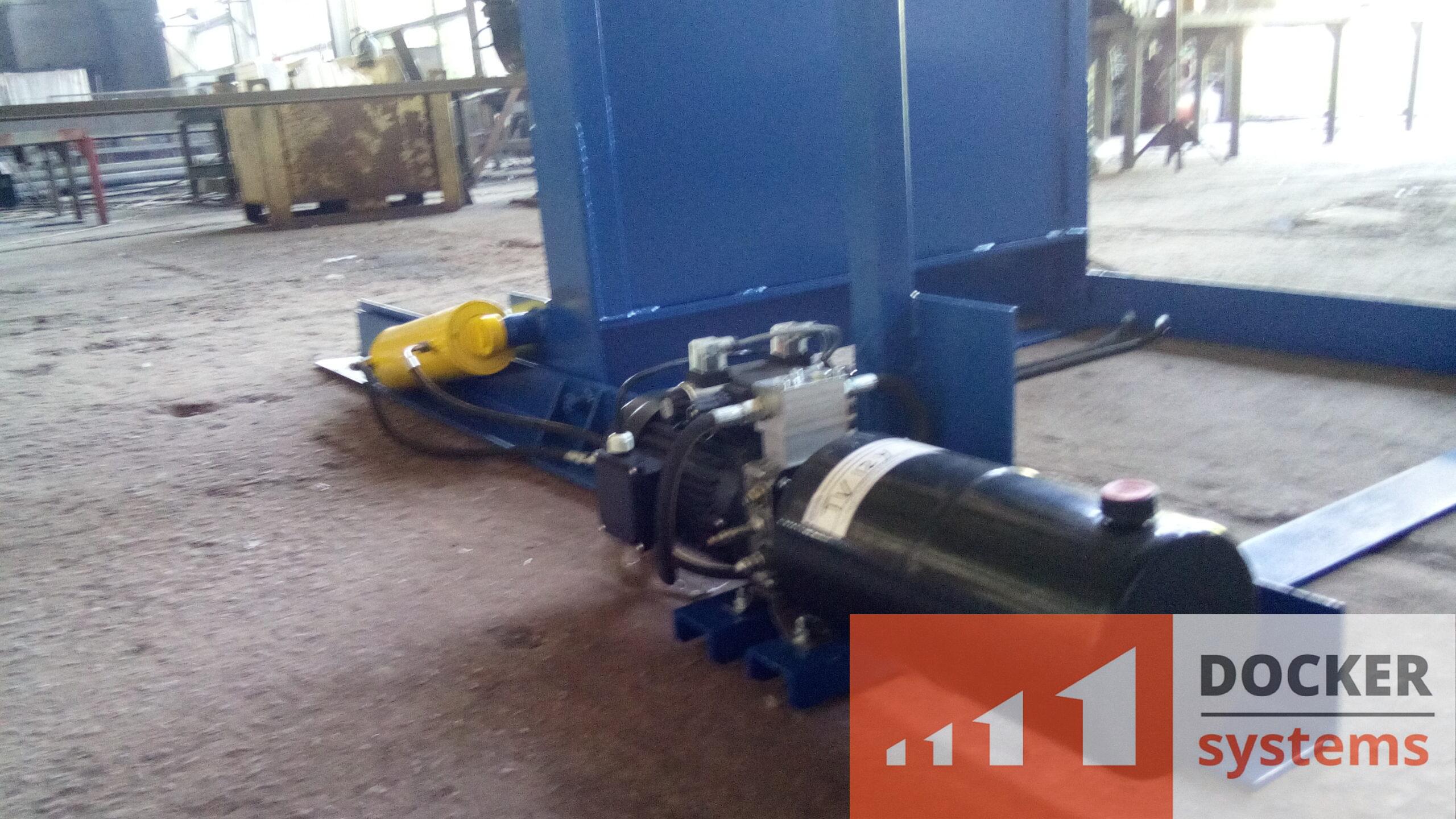

| 3 | Lifting device | Oil station with hydraulic cylinders |
| 4 | Supply voltage, V | 380 |
| 5 | Power supply frequency, Hz | 50 |
| 6 | Power, kW | 2,2 |
| 7 | Tipping speed of 90 degrees, sec. | 30-45 |
| 8 | Control voltage, V | 12 (24) |
| 9 | Hydraulic system capacity, l | 10 |
| 10 | Oil tank capacity, l | 12 |
| 11 | Number of hydraulic cylinders, pcs. | 2 |
| 12 | Working fluid | MGE-46V oil or analog |
| 13 | Operating temperature range, °С | -25…+50 |
| 14 | Primer coating (2 layers) | TM Maxima |
| 15 | Paint and varnish coating (2 coats) | Enamel 2-component TM Maxima |
| 16 | Unladen weight, kg (±5%) | 450 |
|
Materials. |
||
| 1 | Platform flooring | Steel sheet 5 |
| 2 | Platform frame | Channel 16P |
| 3 | Platform stiffeners | Steel sheet 10, 16 |
| 4 | Base profile | Corner 100X100X6 |

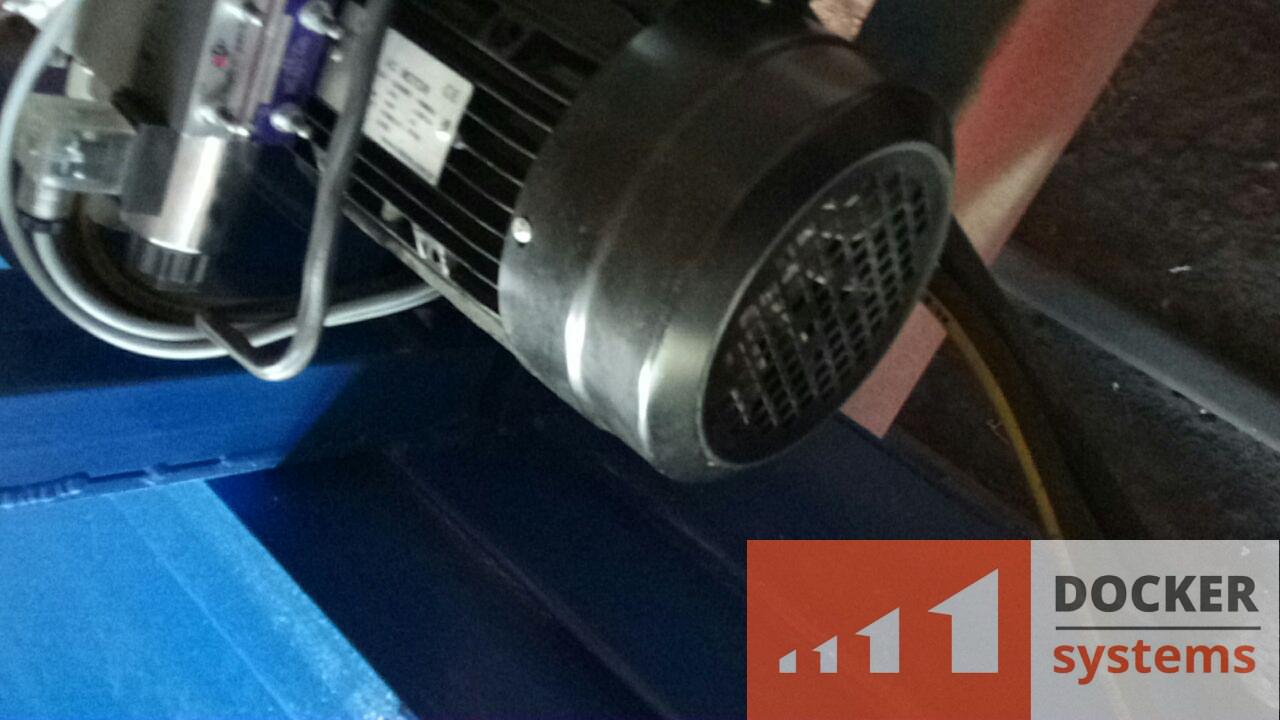

| 5 | Hydraulic station | Docker |
|
Overall dimensions |
||
| 1 | Overall length, mm | 2560 |
| 2 | Overall width, mm | 1550 |
| 3 | Overall height, mm | 1300 |
| 4 | Length of the loading platform, mm | 2500 |
| 5 | Loading dock width, mm | 1500 |
