Stationary loading ramp РММ-2-23-40-8-ПГУ-6
(0 Customer reviews)15 789.25€
Завантажити Бриф: [Артикул]
Description

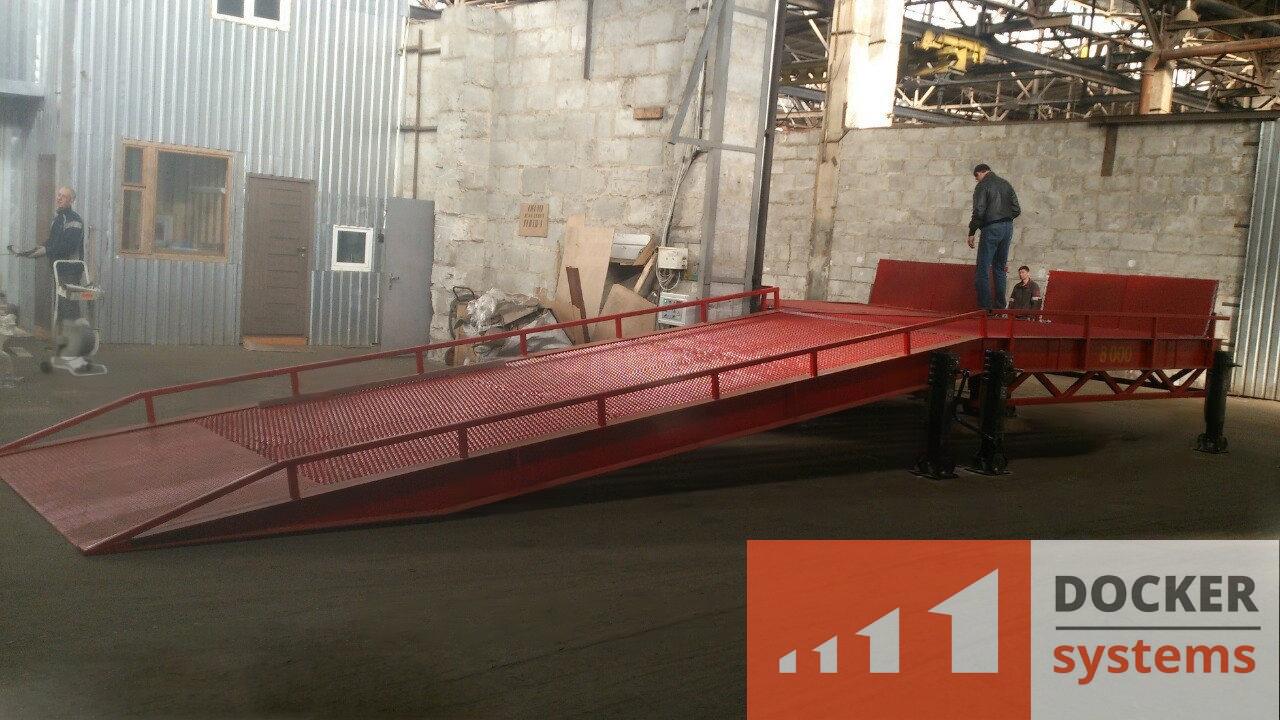

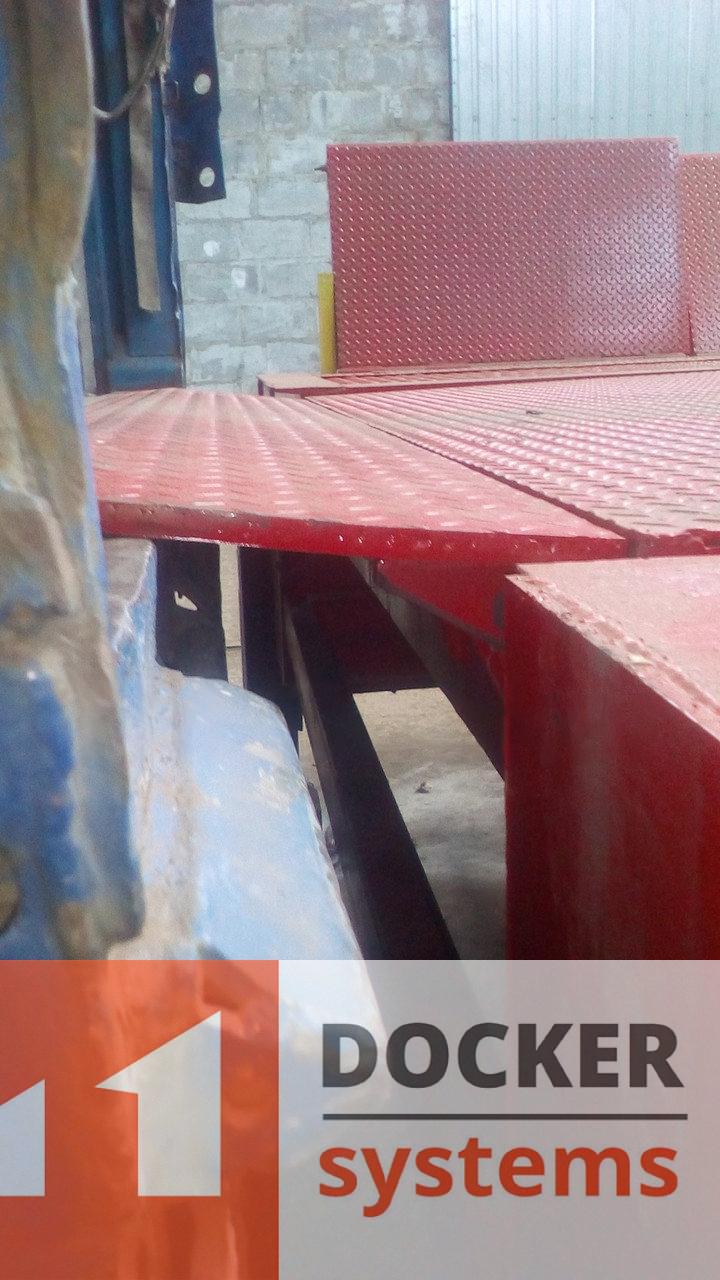

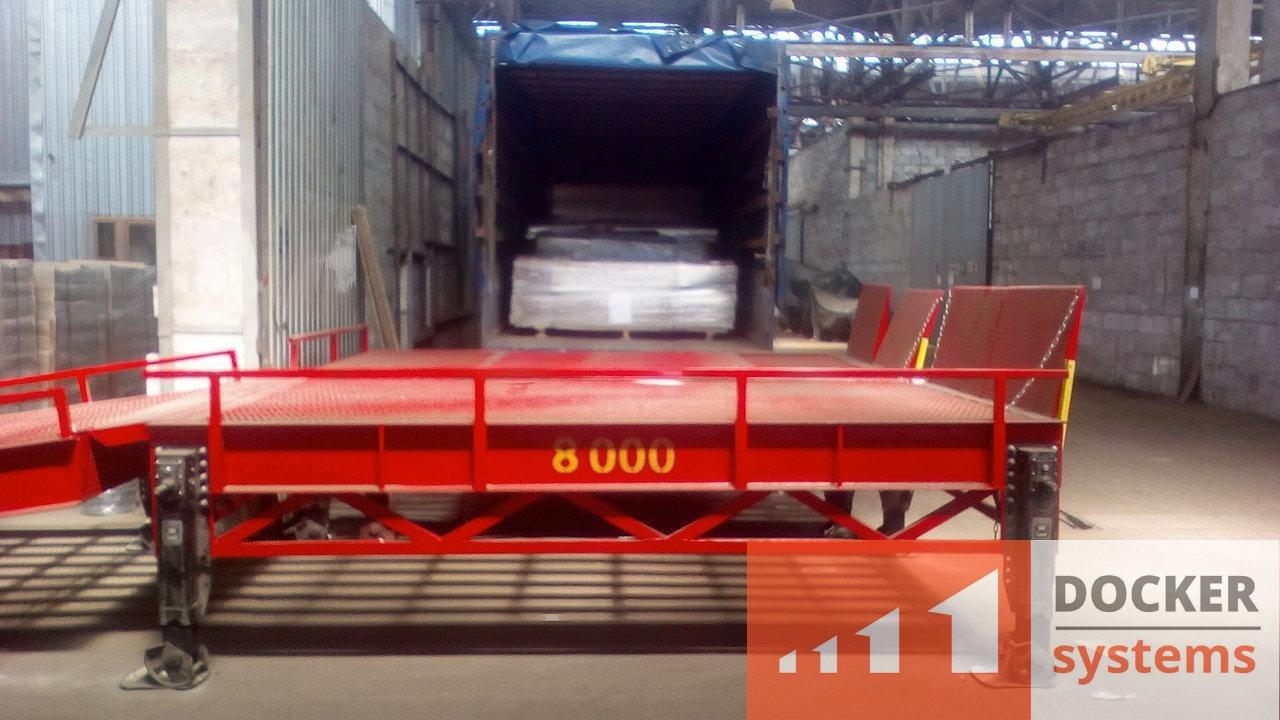

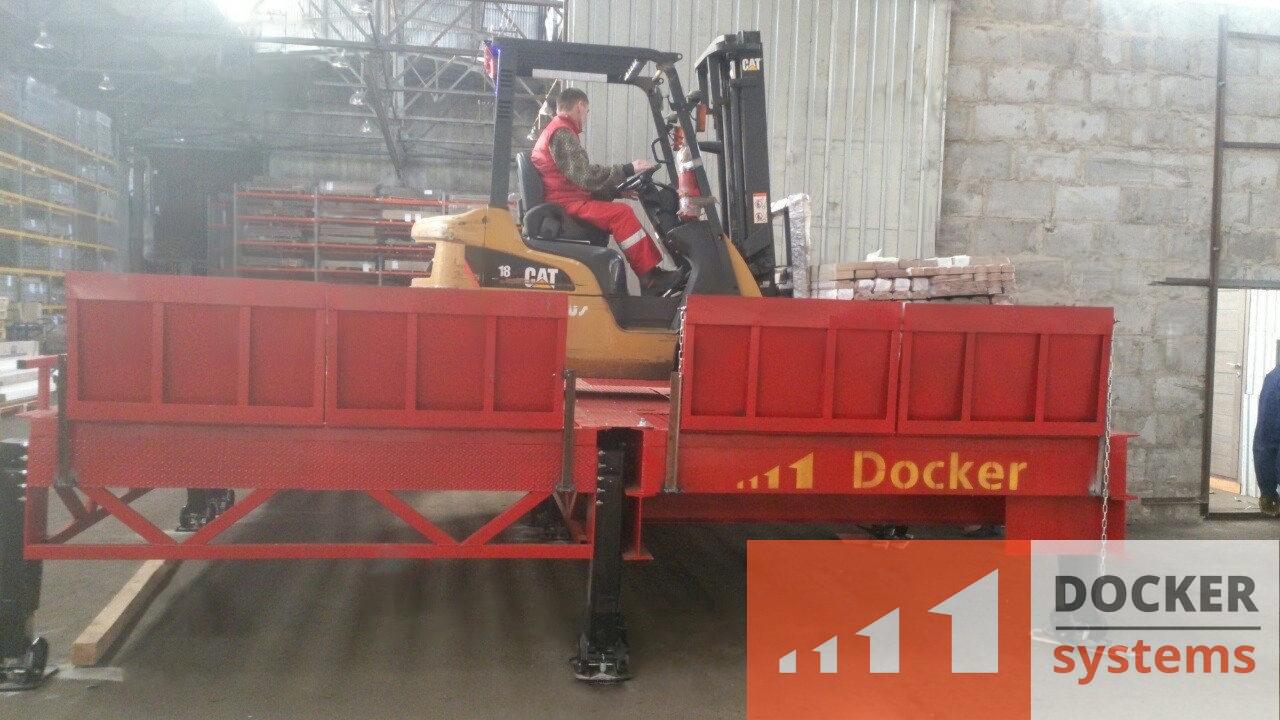

It is used in warehouses and loading docks without a concrete ramp for simultaneous handling of several trucks. A standard stationary loading ramp is capable of handling 3 (three) vehicles at a time. Increasing the number of transshipment places is achieved by adding an additional platform. The stationary loading ramp consists of inclined and horizontal parts. The structure consists of side load-bearing beams, frame, guardrail, connecting plates, aprons (bridges), leveling platform and lifting devices. A connecting plate is used to connect the horizontal parts. The structure of the support frame is made of all-welded steel and rigidly connected to the side beams. The flooring of the entrance and connecting plates is made of corrugated steel sheet. The aprons are made of corrugated steel sheet and channel. The roadway deck is made of welded lattice flooring. Telescopic jacking systems are installed on the overpass’s load-bearing beams to lift and lower the overpass. The product is painted with two-component enamel on a pre-primed surface.
When ordering a product, you can choose one of the following color options: Black (RAL 9005), Red (RAL 3000), Blue (RAL 5005).
| Specification for Stationary loading ramp РММ-2-23-40-8-ПГУ-6 | ||
| № | Main features | |
| 1 | Maximum load, kg | 8000 |
| 2 | Working stroke, mm | 1000 – 1500 |
| 3 | Lifting device | Telescopic jacking system |
| 4 | Leveling platform | PGU-18-20-U |
| 5 | Protective fence | Provided by design |
| 6 | Primer coating (2 layers) | TM Maxima |
| 7 | Paint and varnish coating (2 coats) | Enamel 2-component TM Maxima |
| 8 | Unladen weight, kg (±5%) | 5400 |
| 9 | Safety margin | +30% |
| Materials. | ||
| 1 | Side support profile | I-beam 30 (steel 09G2S) |
| 2 | Transverse profile | Channel 10P (steel St3) |
| 3 | Longitudinal profile | Channel 10P (steel St3) |
| 4 | Top deck material | Welded grating (steel St3) |
| 5 | Material of the entrance and exit deck | Corrugated sheet 5 (steel 08KP) |
| Overall dimensions | ||
| 1 | Total length, mm | 11000 |
| 2 | Total width mm | 4980 |
| 3 | Length of the inclined part, mm | 7000 (Tilt angle 10% – height 1000 mm)
(Tilt angle 12% – height 1500 mm) |
| 4 | Length of the horizontal part, mm | 4000 |
| 5 | Carriageway width, mm | 2200 |
| 6 | Folded height, mm | 1000 |
